Classic Application Series Solar Panels

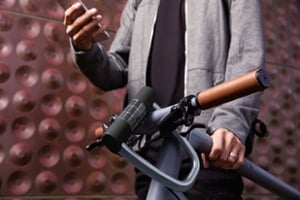

solar panel integrated into a bike lock on a bike

The Classic Application Series offers a new opportunity to solve the old problem of limited power for wireless electronics designed for portable and remote applications. Classic Application panels are lightweight, paper-thin, and durable.



Their ultra-thin, flexible profile enables easy integration into devices for solar recharging or direct power. These panels do not have a UV-stabilized surface but are suitable for intermittent outdoor use.



Classic Application Series panels are optimized to collect sunlight outdoors and are a small representation of PowerFilm’s wide range of custom options, including size, voltage, and more.



These panels are well suited to power the wireless devices and sensors of the emerging IoT industry and many other electronics. Sizes range from inches to feet squared with a standard thickness of 0.22mm.



Classic Application Series Spec Sheet

NEW Sticker Call Out
ONP1.2-12x24 Classic Application Series Electronic Component Solar Panel

ONP1.2-12x24

Power: 4mW

Operating Voltage: 1.2V

Current: 3.3mA

Weight: 0.003oz / 0.09g

NEW Sticker Call Out
ONP1.2-37x54 Classic Application Series Electronic Component Solar Panel

ONP1.2-37x54

Power: 61mW

Operating Voltage: 1.2V

Current: 50.8mA

Weight: 0.02oz / 0.58g

NEW Sticker Call Out
ONP2.4-15x94 Classic Application Series Electronic Component Solar Panel

Power: 45mW

Operating Voltage: 2.4V

Current: 18.6mA

Weight: 0.01oz / 0.40g

MPT2.4-21 Classic Application Series Electronic Component Solar Panel

Power: 34mW

Operating Voltage: 2.4V

Current: 14.2mA

Weight: 0.02oz / 0.40g

SP3-37 Classic Application Series Electronic Component Solar Panel

Power: 66mW

Operating Voltage: 3.0V

Current: 22mA

Weight: 0.02oz / 0.69g

MP3-25 Classic Application Series Electronic Component Solar Panel

Power: 93mW

Operating Voltage: 3.0V

Current: 31mA

Weight: 0.02oz / 0.73g

MP3-37 Classic Application Series Electronic Component Solar Panel

Power: 150mW

Operating Voltage: 3.0V

Current: 50mA

Weight: 0.04oz / 1.11g

MPT3.6-75 Classic Application Series Electronic Component Solar Panel

Power: 180mW

Operating Voltage: 3.6V

Current: 50mA

Weight: 0.05oz / 1.52g

MPT3.6-150 Classic Application Series Electronic Component Solar Panel

Power: 360mW

Operating Voltage: 3.6V

Current: 100mA

Weight: 0.10oz / 2.90g

SP4.2-37 Classic Application Series Electronic Component Solar Panel

Power: 92mW

Operating Voltage: 4.2V

Current: 22mA

Weight: 0.03oz / 0.85g

MPT4.8-75 Classic Application Series Electronic Component Solar Panel

Power: 240mW

Operating Voltage: 4.8V

Current: 50mA

Weight: 0.06oz / 1.86g

MPT4.8-150 Classic Application Series Electronic Component Solar Panel

Power: 480mW

Operating Voltage: 4.8V

Current: 100mA

Weight: 0.13oz / 3.75g

MPT6-75 Classic Application Series Electronic Component Solar Panel

Power: 300mW

Operating Voltage: 6.0V

Current: 50mA

Weight: 0.07oz / 2.14g

MPT6-150 Classic Application Series Electronic Component Solar Panel

Power: 600mW

Operating Voltage: 6.0V

Current: 100mA

Weight: 0.15oz / 4.35g

MP7.2-75F Classic Application Series Electronic Component Solar Panel

Power: 864mW

Operating Voltage: 7.2V

Current: 120mA

Weight: 0.38oz / 11.04g

MP7.2-150F Classic Application Series Electronic Component Solar Panel

Power: 1.73W

Operating Voltage: 7.2V

Current: 240mA

Weight: 1.01oz / 28.68g

MPT15-75 Classic Application Series Electronic Component Solar Panel

Power: 770mW

Operating Voltage: 15.4V

Current: 50mA

Weight: 0.50oz / 14.17g

MPT15-150 Classic Application Series Electronic Component Solar Panel

Power: 1.54W

Operating Voltage: 15.4V

Current: 100mA

Weight: 0.97oz / 27.50g
