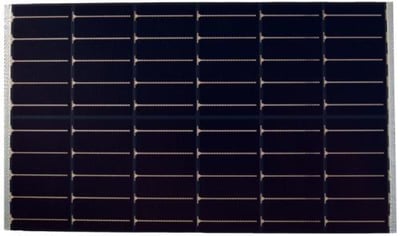

MP7.2-150F

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

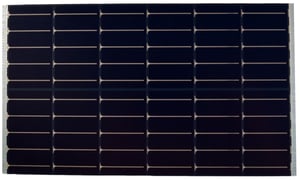

  This thin-film amorphous silicon flexible solar module is laminated with standard-duty PET and foil tape contact terminals. It’s well-suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

  Electrical Specifications:

  Full Sun

  • Power: 1.73W

  • Operating Voltage: 7.2V

  • Current: 240mA

  1/4 Sun

  • Power: 389mW

  • Operating Voltage: 7.2V

  • Current: 54.0mA

  All Levels

  • Average Voc: 10.5V

  • Maximum Voc: 11.1V

  • Isc: 308mA

  Physical Specifications:

  • Dimensions: 253.0 x 146.0 (mm) / 9.96 x 5.75 (in)

  • Weight: 1.01oz / 28.68g

  • Thickness: 0.61mm

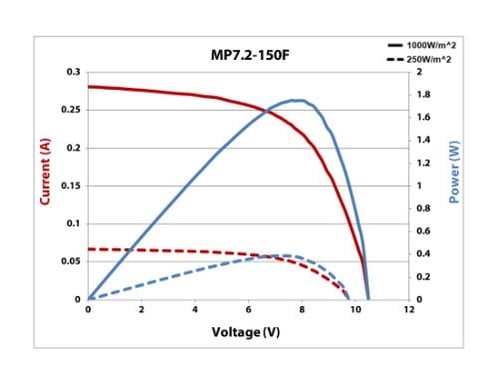

  IV Curve
