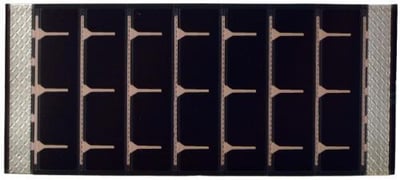

SP4.2-37

SP4.2-37 Classic Application Series Electronic Component Solar Panel
  • Description
  • Where To Buy
  • Resources

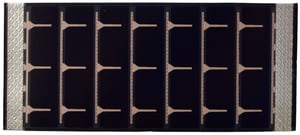

  • This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

    Electrical Specifications:

    Full Sun

    • Power: 92mW

    • Operating Voltage: 4.2V

    • Current: 22mA

    1/4 Sun

    • Power: 21mW

    • Operating Voltage: 4.2V

    • Current: 5.0mA

    All Levels

    • Average Voc: 5.9V

    • Maximum Voc: 6.5V

    • Isc: 28mA

    Physical Specifications:

    • Dimensions: 84.0 x 36.5 (mm) / 3.31 x 1.44 (in)

    • Weight: 0.03oz / 0.85g

    • Thickness: 0.22mm

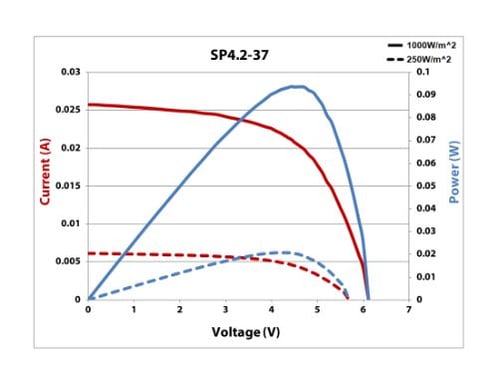

    IV Curve

    SP4.2-37 IV Curve 25% & Full Sun
