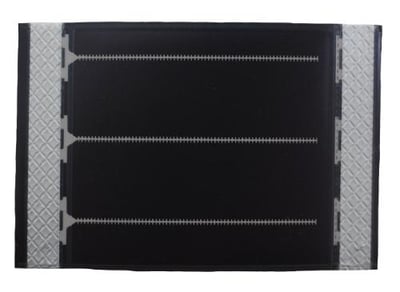

ONP1.2-37x54

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

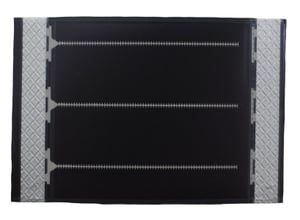

  This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

  Electrical Specifications:

  Full Sun

  • Power: 61mW

  • Operating Voltage: 1.2V

  • Current: 50.8mA

  1/4 Sun

  • Power: 13.7mW

  • Operating Voltage: 1.2V

  • Current: 11.4mA

  All Light Levels

  • Average Voc: 1.6V

  • Maximum Voc: 1.9V

  • Isc: 66mA

  Physical Specifications:

  • Dimensions: 54.0 x 36.5 (mm) / 2.13 x 1.44 (in)

  • Weight: 0.02oz / 0.58g

  • Thickness: 0.22mm

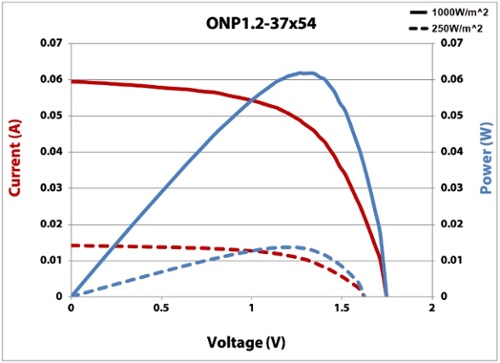

  IV Curve
