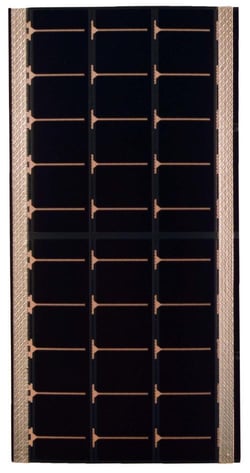

MPT3.6-150

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

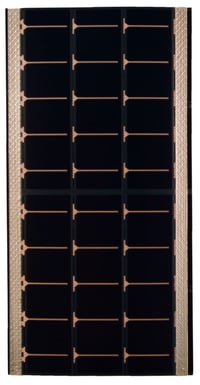

  This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

  Electrical Specifications:

  Full Sun

  • Power: 360mW

  • Operating Voltage: 3.6V

  • Current: 100mA

  1/4 Sun

  • Power: 81mW

  • Operating Voltage: 3.6V

  • Current: 22.5mA

  All Levels

  • Average Voc: 4.9V

  • Maximum Voc: 5.5V

  • Isc: 128mA

  Physical Specifications:

  • Dimensions: 74.0 x 146.0 (mm) / 2.91 x 5.75 (in)

  • Weight: 0.15oz / 4.35g

  • Thickness: 0.22mm

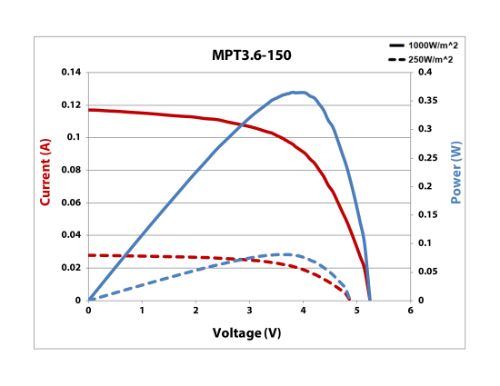

  IV Curve
