Soltronix Semi-Flexible Solar Panels

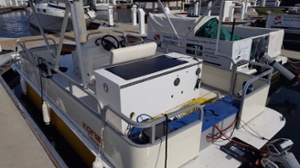

Soltronix Semi-Flexible Solar Panel installed on a boat

“We have been using the Soltronix Solar 45 Watt Solar Panel for about three weeks on our FishSUP 126. So far, the solar panel is working great and we haven’t had to charge the Relion 35A lithium battery from shore power.”

- Cecil, Sea Eagle

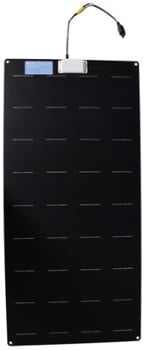

27W Semi-Flexible Solar Panel with Integrated Charge Controller

27W Semi-Flexible Solar Panel with Integrated Charge Controller (R3-8F13.7V)

Current: 1.8 - 2.3A

Voltage: 13.8V float, 14.5V max

Weight: 1.5lb / 0.7kg

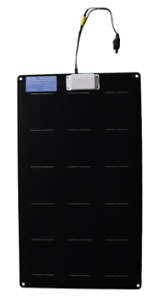

50W Semi-Flexible Solar Panel with Integrated Charge Controller

50W Semi-Flexible Solar Panel with Integrated Charge Controller (R3-15F13.7V)

Current: 2.8 - 3.8A

Voltage: 13.8V float, 14.5V max

Weight: 3.0lb / 1.4kg

110W Semi-Flexible Solar Panel with Integrated Charge Controller

110W Semi-Flexible Solar Panel with Integrated Charge Controller (R3-32F13.7V)

Current: 6.0-8.5A

Voltage:13.8V float, 14.5V max

Weight: 5.5lb / 2.5kg

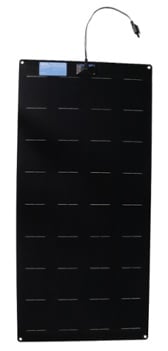

110W Semi-Flexible Solar Panel

110W Semi-Flexible Solar Panel (R3-32F18.9V)

Current: 5.7A

Voltage: 22.8V

Weight: 5.5lb / 2.5kg

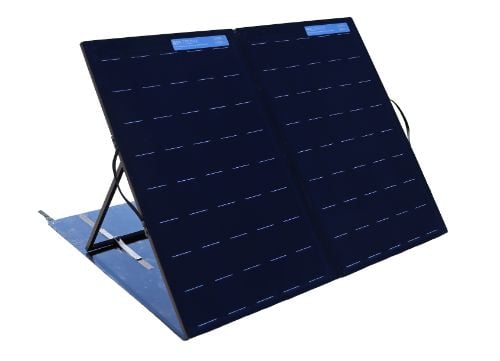

270W PRESS Solar Panel

270W PRESS (R3-80F4728V)

Voltage: 24V / 47V

Weight: 28.0lb / 12.7kg

Soltronix solar panels are designed and engineered to be the most durable semi-flexible crystalline silicon panels on the market. They are made from high-efficiency SunPower solar cells and paired with a proprietary encapsulation system that ensures the best durability and environmental protection. All modules are tested at the end of the manufacturing process to ensure they exceed the advertised performance.



The PowerBoost series of charge controllers incorporate high-efficiency DC-DC converters and a proprietary power point tracking system to optimize the power collected from the solar panel and efficiently charge a battery. Our charge controllers are specifically designed for use with solar and will not overcharge and reduce the battery's life, a common problem with off-the-shelf three-stage charge controllers.



The encapsulation stack used in the Soltronix panels offers protection from hot, humid environments, icing, water immersion, and saltwater spray. Additionally, the encapsulation stack has been engineered to withstand ½” hail with no degradation in panel performance.
