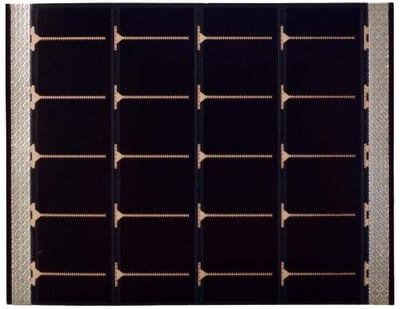

MPT4.8-75

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

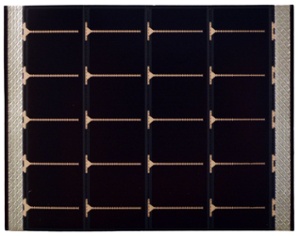

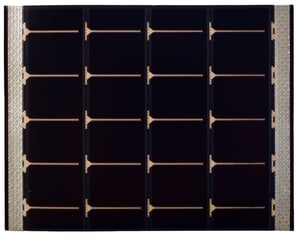

  This thin-film amorphous silicon flexible solar module is laminated with standard-duty PET and foil tape contact terminals. It’s well-suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

  Electrical Specifications:

  Full Sun

  • Power: 240mW

  • Operating Voltage: 4.8V

  • Current: 50mA

  1/4 Sun

  • Power: 54mW

  • Operating Voltage: 4.8V

  • Current: 11.3mA

  All Levels

  • Average Voc: 6.4V

  • Maximum Voc: 7.4V

  • Isc: 64mA

  Physical Specifications:

  • Dimensions: 94.0 x 73.0 (mm) / 3.70 x 2.87 (in)

  • Weight: 0.06oz / 1.86g

  • Thickness: 0.22mm

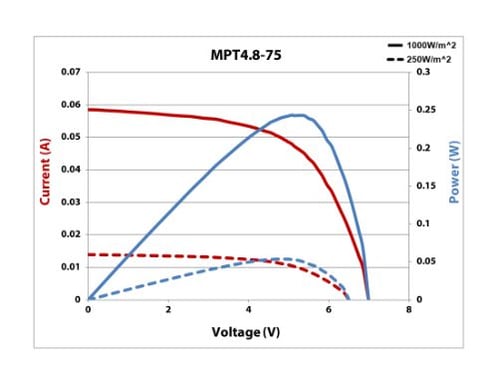

  IV Curve
