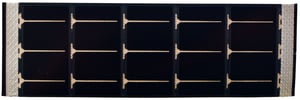

This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.
Electrical Specifications:
Full Sun
-
Power: 150mW
-
Operating Voltage: 3.0V
-
Current: 50mA
1/4 Sun
-
Power: 34mW
-
Operating Voltage: 3.0V
-
Current: 11.3mA
All Light Levels
-
Average Voc: 4.1V
-
Maximum Voc: 4.6V
-
Isc: 63.0mA
Physical Specifications:
-
Dimensions: 114.0 x 36.5 (mm) / 4.49 x 1.44 (in)
-
Weight: 0.04oz / 1.11g
-
Thickness: 0.22mm

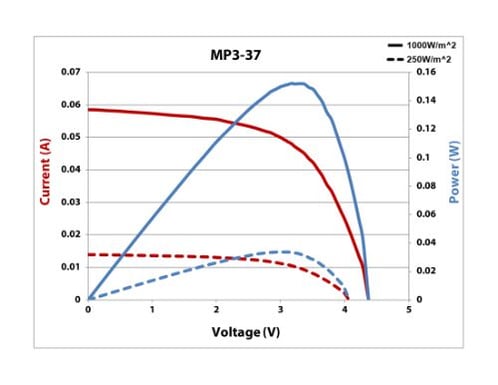

IV Curve
.jpg?width=500&height=385&name=MP3-37%20IV%20Curve%2025%25%20%26%20Full%20Sun%20(500%20x%20386).jpg)
-
