SP3-37

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

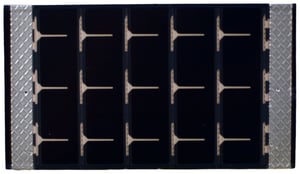

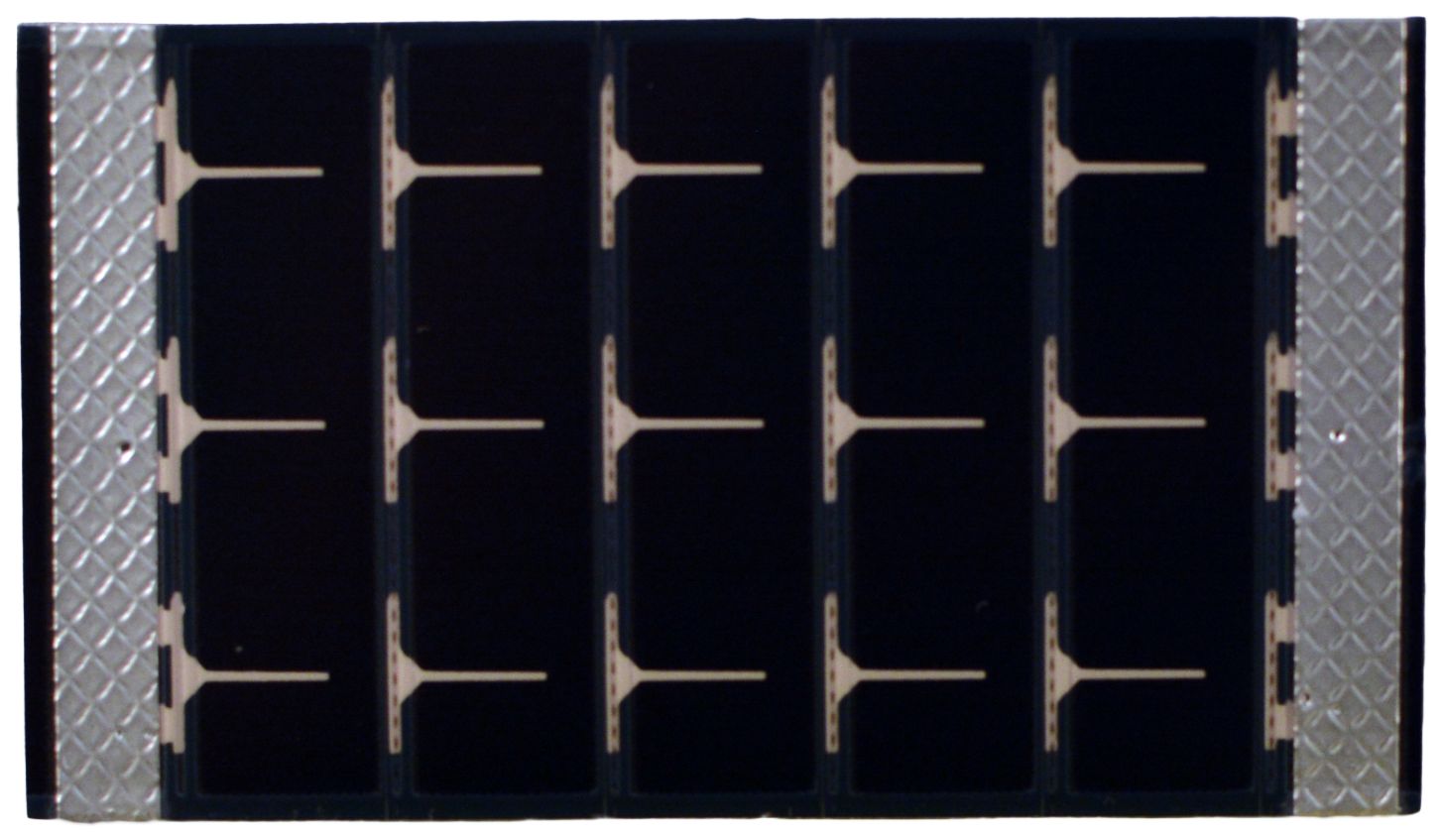

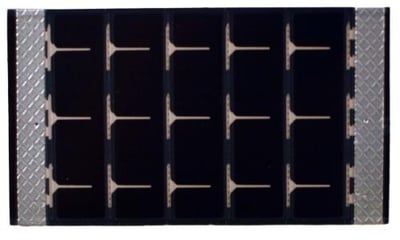

  This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

  Electrical Specifications:

  Full Sun

  • Power: 66mW

  • Operating Voltage: 3.0V

  • Current: 22mA

  1/4 Sun

  • Power: 15mW

  • Operating Voltage: 3.0V

  • Current: 5.0mA

  All Levels

  • Average Voc: 4.1V

  • Maximum Voc: 4.6V

  • Isc: 28.0mA

  Physical Specifications:

  • Dimensions: 64.0 x 36.5 (mm) / 2.52 x 1.44 (in)

  • Weight: 0.02oz / 0.69g

  • Thickness: 0.22mm

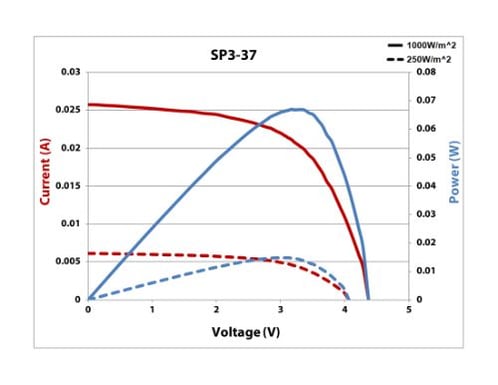

  IV Curve
