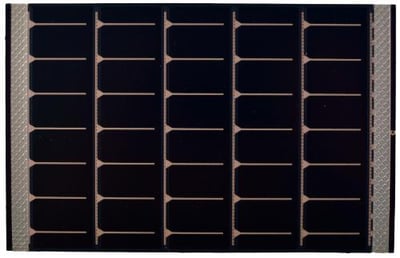

MPT6-75

MPT6-75 Classic Application Series Electronic Component Solar Panel
  • Description
  • Where To Buy
  • Resources

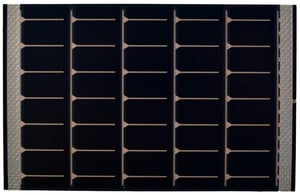

  • This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

    Electrical Specifications:

    Full Sun

    • Power: 300mW

    • Operating Voltage: 6.0V

    • Current: 50mA

    1/4 Sun

    • Power: 68mW

    • Operating Voltage: 6.0V

    • Current: 11.3mA

    All Levels

    • Average Voc: 8.0V

    • Maximum Voc: 9.3V

    • Isc: 64mA

    Physical Specifications:

    • Dimensions: 114.0 x 73.0 (mm) / 4.49 x 2.87 (in)

    • Weight: 0.08oz / 2.30g

    • Thickness: 0.22mm

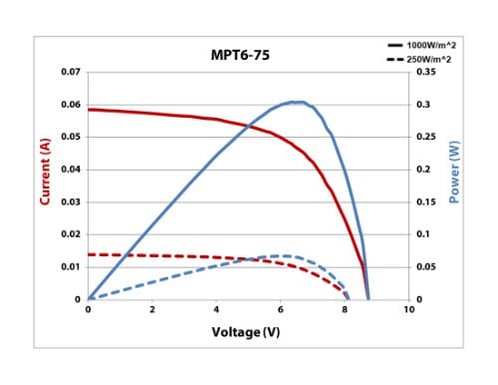

    IV Curve

    MPT6-75 IV Curve 25% & Full Sun (500 × 386)
