ONP1.2-12x24

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

  This thin-film amorphous silicon flexible solar module is laminated with standard-duty PET and foil tape contact terminals. It’s well-suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

  Electrical Specifications:

  Full Sun

  • Power: 4mW

  • Operating Voltage: 1.2V

  • Current: 3.3mA

  1/4 Sun

  • Power: 0.9mW

  • Operating Voltage: 1.2V

  • Current: 0.7mA

  All Light Levels

  • Average Voc: 1.6V

  • Maximum Voc: 1.9V

  • Isc: 4.3mA

  Physical Specifications:

  • Dimensions: 24.0 x 12.0 (mm) / 0.94 x 0.47 (in)

  • Weight: 0.003oz / 0.09g

  • Thickness: 0.22mm

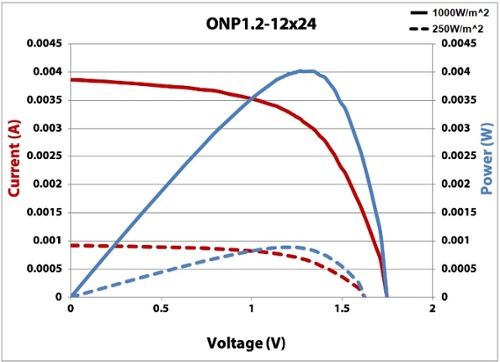

  IV Curve
