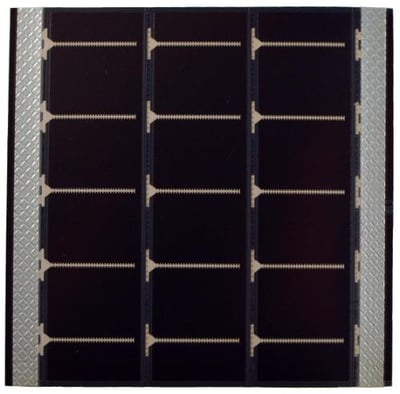

MPT3.6-75

MPT3.6-75 Classic Application Series Electronic Component Solar Panel
  • Description
  • Where To Buy
  • Resources

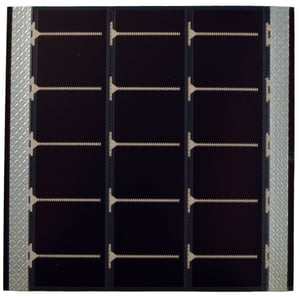

  • This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

    Electrical Specifications:

    Full Sun

    • Power: 180mW

    • Operating Voltage: 3.6V

    • Current: 50mA

    1/4 Sun

    • Power: 41mW

    • Operating Voltage: 3.6V

    • Current: 11.3mA

    All Levels

    • Average Voc: 4.9V

    • Maximum Voc: 5.5V

    • Isc: 64mA

    Physical Specifications:

    • Dimensions: 74.0 x 73.0 (mm) / 2.91 x 2.87 (in)

    • Weight: 0.07oz / 2.14g

    • Thickness: 0.22mm

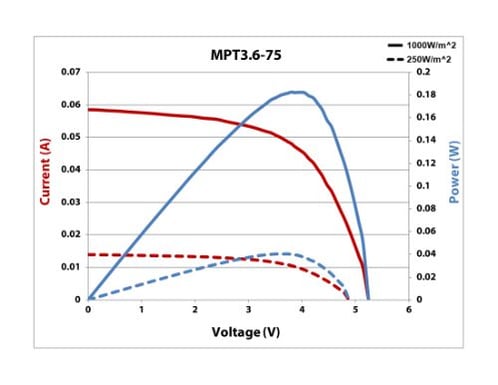

    IV Curve

    MPT3.6-75 IV Curve 25% & Full Sun
