MP7.2-75F

MP7.2-75F Classic Application Series Electronic Component Solar Panel
  • Description
  • Where To Buy
  • Resources
  • This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

    Electrical Specifications:

    Full Sun

    • Power: 864mW

    • Operating Voltage: 7.2V

    • Current: 120mA

    1/4 Sun

    • Power: 194mW

    • Operating Voltage: 7.2V

    • Current: 27.0mA

    All Levels

    • Average Voc: 10.5V

    • Maximum Voc: 11.1V

    • Isc: 154mA

    Physical Specifications:

    • Dimensions: 253.0 x 73.0 (mm) / 9.96 x 2.87 (in)

    • Weight: 0.38oz / 11.04g

    • Thickness: 0.61mm

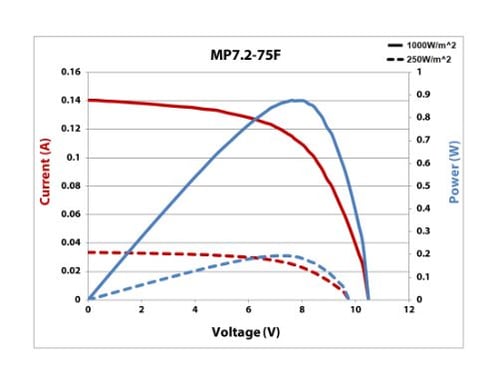

    IV Curve

    MP7.2-75F IV Curve 25% & Full Sun (500 x 386)
