Indoor Light Series Solar Panels

electronic component panel in an industrial setting

The Indoor Light Series opens new opportunities for developing remote power solutions in low light and indoor applications. These panels are identical to the Classic Application Series but are optimized to harvest artificial indoor light instead of sunlight. They can provide energy collection at light levels down to 200 lux and below, making them useful for almost any indoor environment.



Whether you need advice on battery sizing and chemistry or circuit design using any of the leading energy-harvesting chips on the market today, we can help. We also offer development kits that will take you from IoT concept to product faster.

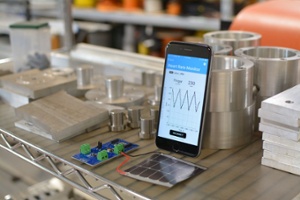

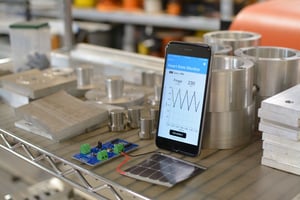

With industry-leading performance, these panels are ideal for integrating with ultra-low power wireless devices, sensors, and electronics. For application notes and examples, check out our Indoor Solar Development Kits, which make prototyping and experimenting with these panels simple.



Indoor Light Series panels are compatible with all common indoor light sources, including LED, fluorescent, incandescent, halogen, and indirect sunlight. All panels are tested and are guaranteed to perform in dim 200 lux and brighter 1000 lux environments.



Four standard sizes are offered. Additionally, there are a wide range of custom options available.



If you are working on indoor applications, we can provide additional support in designing your solution. Contact us for more information.



Indoor Light Series Spec Sheet

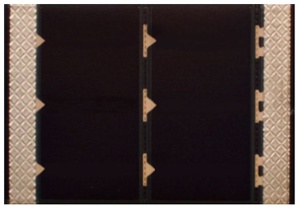

LL200-2.4-37

LL200-2.4-37

200 Lux

Power: 0.068mW

Operating Voltage: 1.6V

Current: 0.043mA

Weight: 0.03oz / 0.70g

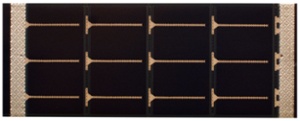

LL200-2.4-75

LL200-2.4-75

200 Lux

Power: 0.289mW

Operating Voltage: 1.6V

Current: 0.181mA

Weight: 0.06oz / 1.70g

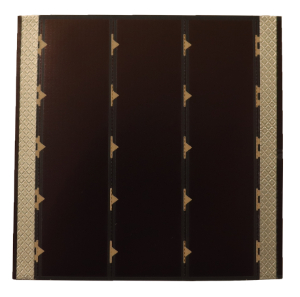

LL200-3-37

LL200-3-37

200 Lux

Power: 0.166mW

Operating Voltage: 2.1V

Current: 0.079mA

Weight: 0.04oz / 1.13g

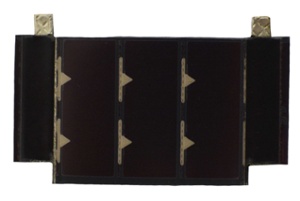

LL200-3.6-75

LL200-3.6-75

200 Lux

Power: 0.206mW

Operating Voltage: 2.4V

Current: 0.086mA

Weight: 0.05oz / 1.42g

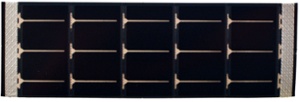

LL200-4.8-37

LL200-4.8-37

200 Lux

Power: 0.133mW

Operating Voltage: 3.2V

Current: 0.041mA

Weight: 0.04oz / 1.13g

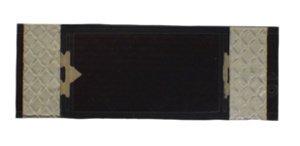

INP1.2-12x34

INP1.2-12x34

200 Lux

Power: 0.010mW

Operating Voltage: 0.8V

Current: 0.012mA

Weight: 0.004oz / 0.104g

INQ2.4-10x94T

INP2.4-10x94T

200 Lux

Power: 0.033mW

Operating Voltage: 1.6V

Current: 0.021mA

Weight: 0.010oz / 0.270g

INQ3.6-24x44T

INP3.6-24x44T

200 Lux

Power: 0.031mW

Operating Voltage: 2.4V

Current: 0.013mA

Weight: 0.010oz / 0.270g

INP3.6-12x310

INP3.6-12x310

200 Lux

Power: 0.150mW

Operating Voltage: 2.4V

Current: 0.062mA

Weight: 0.033oz / 0.926g
