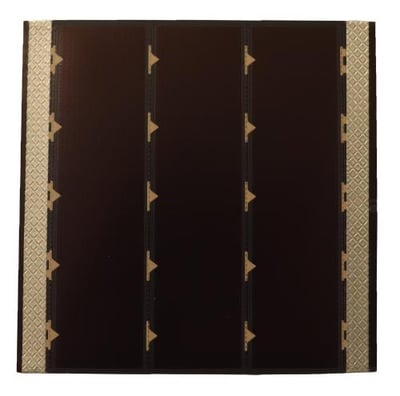

LL200-3.6-75

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

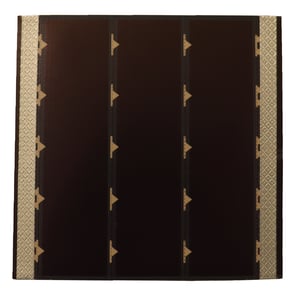

  This thin-film amorphous silicon flexible indoor solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect artificial lighting in indoor settings such as warehouses, offices, and retail spaces.

  Electrical Specifications:

  Max Voc all light levels = 5.5V

  200 Lux

  • Power: 0.206mW

  • Operating Voltage: 2.4V

  • Current: 0.086mA

  • Average Voc: 3.6V

  • Isc: 0.1mA

  1000 Lux

  • Power: 1.354mW

  • Operating Voltage: 3.2V

  • Current: 0.423mA

  • Average Voc: 4.0V

  • Isc: 0.6mA

  Physical Specifications:

  • Dimensions: 73.0 x 74.0 (mm) / 2.87 x 2.91 (in)

  • Weight: 0.05oz / 1.42g

  • Thickness: 0.22mm

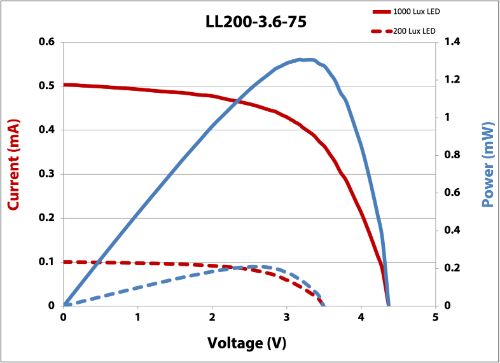

  IV Curve
