INP2.4-10x94T

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

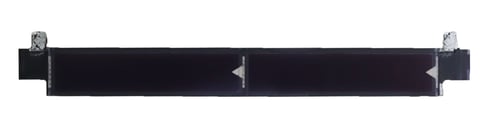

  This thin-film amorphous silicon flexible indoor solar module is laminated with standard-duty PET and foil tape contact terminals. It’s well-suited for collecting artificial lighting in indoor settings, such as warehouses, offices, and retail spaces.

  Electrical Specifications:

  Max Voc all light levels = 3.7V

  200 Lux

  • Power: 0.033mW

  • Operating Voltage: 1.6V

  • Current: 0.021mA

  • Average Voc: 2.4V

  • Isc: 0.03mA

  1000 Lux

  • Power: 0.219mW

  • Operating Voltage: 2.1V

  • Current: 0.105mA

  • Average Voc: 2.7V

  • Isc: 0.14mA

  Physical Specifications:

  • Dimensions: 94.0 x 10.0 (mm) / 3.7 x 0.393 (in)

  • Weight: 0.01oz / 0.25g

  • Thickness: 0.22mm

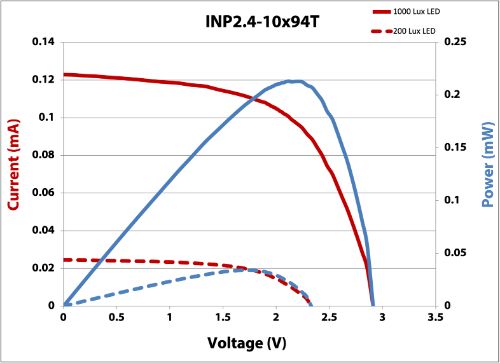

  IV Curve



• Distributors

  United States

  Ships Internationally







• Resources

  INP2.4-10x94T Drawing

  Electronic Component Solar Panel Handling Instructions

  How to Solder PowerFilm Electronic Component Solar Panels
