INP3.6-24x44T

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

  This thin-film amorphous silicon flexible indoor solar module is laminated with standard-duty PET and foil tape contact terminals. It’s well-suited for collecting artificial lighting in indoor settings, such as warehouses, offices, and retail spaces.

  Electrical Specifications:

  Max Voc all light levels = 5.5V

  200 Lux

  • Power: 0.031mW

  • Operating Voltage: 2.4V

  • Current: 0.013mA

  • Average Voc: 3.6V

  • Isc: 0.02mA

  1000 Lux

  • Power: 0.204mW

  • Operating Voltage: 3.2V

  • Current: 0.063mA

  • Average Voc: 4.0V

  • Isc: 0.08mA

  Physical Specifications:

  • Dimensions: 44.0 x 24.0 (mm) / 1.732 x 0.944 (in)

  • Weight: 0.01oz / 0.36g

  • Thickness: 0.22mm

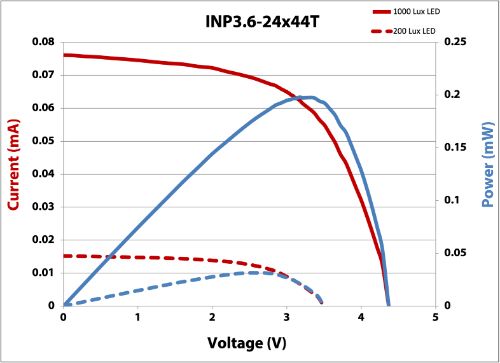

  IV Curve
