LL200-3-37

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

  This thin-film amorphous silicon flexible indoor solar module is laminated with standard-duty PET and foil tape contact terminals. It’s well-suited for collecting artificial lighting in indoor settings, such as warehouses, offices, and retail spaces.

  Electrical Specifications:

  Max Voc all light levels = 4.6V

  200 Lux

  • Power: 0.166mW

  • Operating Voltage: 2.1V

  • Current: 0.079mA

  • Average Voc: 2.9V

  • Isc: 0.1mA

  1000 Lux

  • Power: 1.089mW

  • Operating Voltage: 2.6V

  • Current: 0.419mA

  • Average Voc: 3.5V

  • Isc: 0.6mA

  Physical Specifications:

  • Dimensions: 114.0 x 36.5 (mm) / 4.49 x 1.44 (in)

  • Weight: 0.04oz / 1.13g

  • Thickness: 0.22mm

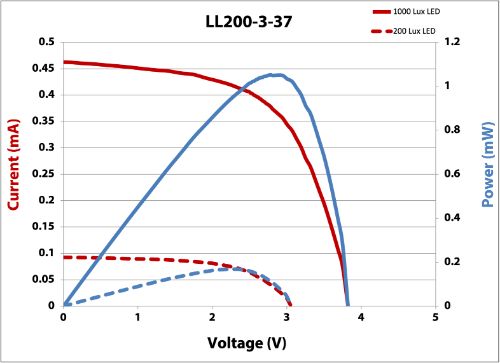

  IV Curve
