INP3.6-12x310

Product Details:

• Description

  Click the Distributors menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

  This thin-film amorphous silicon flexible indoor solar module is laminated with standard-duty PET and foil tape contact terminals. It’s well-suited for collecting artificial lighting in indoor settings, such as warehouses, offices, and retail spaces.

  Electrical Specifications:

  Max Voc all light levels = 5.5V

  200 Lux

  • Power: 0.150mW

  • Operating Voltage: 2.4V

  • Current: 0.062mA

  • Average Voc: 3.6V

  • Isc: 0.08mA

  1000 Lux

  • Power: 0.982mW

  • Operating Voltage: 3.2V

  • Current: 0.307mA

  • Average Voc: 4.0V

  • Isc: 0.40mA

  Physical Specifications:

  • Dimensions: 310.0 x 11.86 (mm) / 12.204 x 0.466 (in)

  • Weight: 0.01oz / 0.84g

  • Thickness: 0.22mm

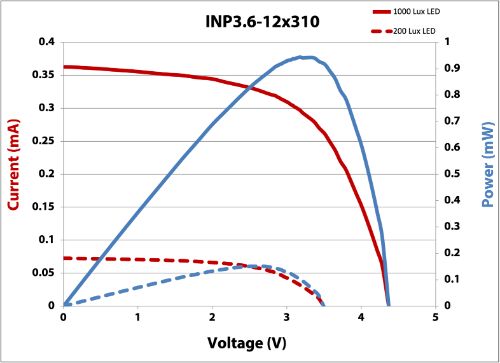

  IV Curve
