Assorted amorphous silicon electronic component thin film solar panels



The Electronic Component Product Family is perfectly positioned to fast track an integrated solar project from concept to prototype to production.



This product family is well suited to power the wireless devices and sensors of the emerging IoT industry and many other battery operated and remote electronics.



There are four Electronic Component product series, including Classic Application, Indoor Light, WeatherPro, and WeatherLite. Each has a unique feature set and is well suited for different applications and environments.



With a wide range of power, voltage, and current, we have stock panels available to match common energy harvesting and battery charging circuitry. Panels have been selected from years of experience to provide the most versatility for use in a wide variety of applications.



Whether in an outdoor or indoor environment, PowerFilm has an optimal solution for your application.



Electronic Component Solar Panels will produce power based on the amount of light available. Below is an example of what you can expect based on the number of Lux a panel is exposed to.



*200-1,000 Lux performance using Indoor Light Series only. 10,000 -100,000 lux performance using Classic Application, WeatherPro or WeatherLite*

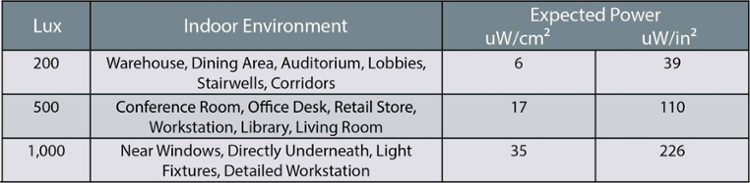

Indoor Environment Power by Lux Table

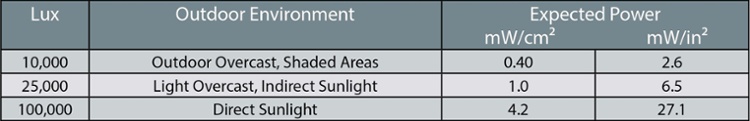

Outdoor Environment Power by Lux Table



Thumbnail View SelectedList View Not Selected
Page of 3
Per Page
Showing 1-12 of 27

200 Lux

Power: 0.07mW

Operating Voltage: 1.6V

Current: 0.04mA

Weight: 0.03oz / 0.70g

200 Lux

Power: 0.289mW

Operating Voltage: 1.6V

Current: 0.181mA

Weight: 0.06oz / 1.70g

200 Lux

Power: 0.166mW

Operating Voltage: 2.1V

Current: 0.079mA

Weight: 0.04oz / 1.13g

200 Lux

Power: 0.206mW

Operating Voltage: 2.4V

Current: 0.086mA

Weight: 0.05oz / 1.42g

Power: 0.03W

Operating Voltage: 2.4V

Current: 14.2mA

Weight: 0.02oz / 0.40g

Power: 0.07W

Operating Voltage: 3.0V

Current: 22mA

Weight: 0.03oz / 0.85g

Power: 0.09W

Operating Voltage: 3.0V

Current: 31mA

Weight: 0.03oz / 0.85g



Power: 0.15W

Operating Voltage: 3.0V

Current: 50mA

Weight: 0.04oz / 1.13g

200 Lux

Power: 0.133mW

Operating Voltage: 3.2V

Current: 0.041mA

Weight: 0.04oz / 1.13g

Power: 0.18W

Operating Voltage: 3.6V

Current: 50mA

Weight: 0.06oz / 1.70g

Power: 0.36W

Operating Voltage: 3.6V

Current: 100mA

Weight: 0.10oz / 2.83g



Power: 0.09W

Operating Voltage: 4.2V

Current: 22mA

Weight: 0.03oz / 0.85g

Previous
of 3
Showing 1-12 of 27
