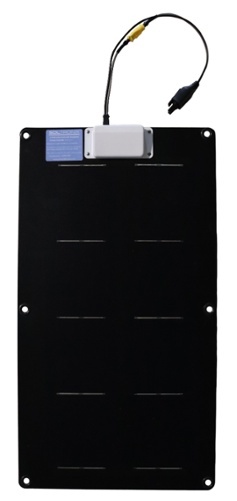

27W Semi-Flexible Solar Panel with Integrated Charge Controller (R3-8F13.7V)

24 watt soltronix solar panel with integrated charge controller

Specifications

  • Panel output to PowerBoost Integrated Charge Controller

    • Nominally 27W

  • PowerBoost Integrated Charge Controller Output to Battery

    • Charges 12V battery (flooded and AGM)

    • Charging voltage 13.8V float, 14.5V max

    • Charging efficiency 88-91%

    • Effective power to battery 21W

    • Current 1.5A - 2.0A (depending on battery voltage).

  • Description
  • Important Notes
  • Specifications
  • How To Charge
  • Accessories
  • Where To Buy
  • Resources
  • The 27W Solar Panel with Integrated Charge Controller brings together PowerFilm’s 30 years in the solar industry with custom solutions using high-efficiency SunPower monocrystalline (c-Si) solar cells.



    The PowerBoost series of charge controllers utilize high-efficiency DC-DC converters and a proprietary power point tracking system to optimize the power collected from the solar panel and efficiently charge a battery.



    The PowerBoost will provide the most power to a battery and extend the battery’s lifetime. This charge controller is designed specifically for use with solar and will not overcharge a battery like with 3 stage chargers connected to solar modules.



    Leveraging our deep expertise in custom encapsulations, varied substrates, and total electronics, the Soltronix 27W Solar Panel provides unsurpassed efficiency delivering more power to your system.

    What's included:

    Best uses:

    • 12V battery charging

    • Trolling motor, smartphone, fish finder, GPS, car, RV, lawnmower, ATV

    • Camp lighting

    Benefits:

    • Integrated Charge Controller - connect to your device and start charging without worrying about additional components or cables.

    • Rugged Encapsulation - protection from hot, humid environments, icing, water immersion, and saltwater spray.

    • Lightweight - weighs less than 6lbs.

    • High Efficiency - made with top of the line Sunpower crystalline solar cells

    • Whole-Cell Design - reduces induced cracks and defects and maximizes power.

    • Cost-Effective - due to an ever-increasing scale, the cost of crystalline solar panels continues to drop, making it an affordable solar technology.

  • If the panel is wet, wipe it down before storing it in a cool, dry environment.



    All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.

    • Power:

      • Panel output to PowerBoost Integrated Charge Controller

        • Nominally 27W

      • PowerBoost Integrated Charge Controller Output to Battery

        • Charges 12V battery (flooded and AGM)

        • Charging voltage 13.8V float, 14.5V max

        • Charging efficiency 88-91%

        • Effective power to battery 23.6W

        • Current 1.5A - 2.0A (depending on battery voltage).

      Charge controller:

      • Protection

        • Reverse polarity

        • ESD capability (AEC-Q101): human body model: class H3B: > 8 kV

        • Reverse leakage

      Physical:

      • Dimensions

        • 24.0 x 13.0 x 0.1 (in) / 609.6 x 330.2 x 2.5 (mm)

        • Black fiberglass backing

      • Weight

        • 1.5lb / 0.7kg

      Environmental:

      • Temperature Coefficient

        • Voltage: -1.8mV/C

        • Power: -0.32%/C

      • Storage temperature: -40°C to 85°C

      • Operating temperature: -40°C to 60°C

      1. Set the panel on the ground (or other surface) with the solar side facing up and pointed towards the sun.

      2. Use the grommets on each of the corners and a tie cord to hold the panel in place and reduce loss or damage from high winds.

      3. Connect the appropriate accessory and cable for the type of device you will be charging.

      Electronics:

      1. Connect the 12V Female Car Charger Adapter (RA-2) (not included) to the panel.

      2. Use your own USB car charger adapter to connect your device to the RA-2 or use a 2.4A Dual USB 12V Adapter (RA-14B) (not included) to charge USB electronics.

      Selecting a battery:

      • Soltronix Solar Panels are compatible with all 12V flooded lead-acid and AGM batteries (10Ah or larger are recommended) and many LiFePO and Li-ion batteries (consult battery manufacturer to confirm solar compatibility).
