10A Charge Controller (CC12V-10)

10A Charge Controller (CC12V-10)
Where To Buy

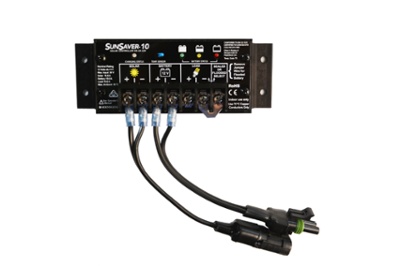

PowerFilm's 10A Charge Controller (CC12V-10) comes with pre-wired PowerFilm Connectors. Plug and Play with the 100 Watt Soltronix Solar Panel.

This charge controller is compatible with sealed lead-acid, flooded lead-acid, gelled lead-acid, and absorbed glass mat (AGM) battery chemistries.

Exceptional Quality

  • Failure rate of less than 1 per 1,000 shipped (<0.1%)

  • 100% solid state. Power MOSFET design

  • Manufactured in an ISO 9000 factory

  • 100% pre-shipment functional testing

Longer Battery Life

  • Advanced PWM charging

  • Series design (not shunt) for cool operation

  • 4-stage charging: bulk, absorption, float, equalize

  • Optimized sealed or flooded battery set points

  • Temperature compensated charging

  • Low voltage load disconnect on several versions

Designed for Harsh Environments

  • Temperature rating of –40°C to +60°C

  • Epoxy encapsulation for protection against humidity and dust ingress

  • Corrosion protection: marine rated terminals and anodized aluminum case

  • Certified for use in hazardous locations

Easy to Install and Use

  • Factory pre-sets result in no required install settings

  • Electronic protections prevent damage from wiring mistakes

  • Fully automatic operation and fault recovery

  • LED’s display extensive information about status, faults and battery condition Solar Controller

Physical Specifications

  • Weight:

    • 13.9 (oz)

    • 394.0 (g)

Document Icon Solar Panel Accessories
File Size: 365.24 KB
