160W Crystalline Foldable Solar Panel (F3-48F28.3VKHAS)

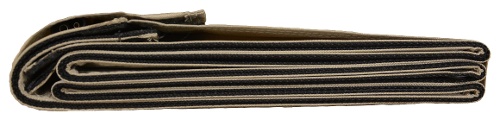

160w crystalline foldable solar panel_khaki_2_web

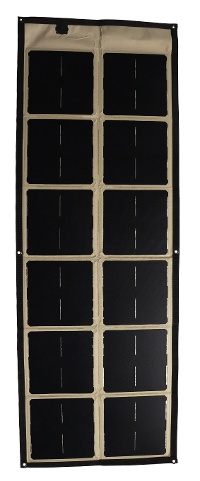

160w crystalline foldable solar panel_khaki_transparent_4_web

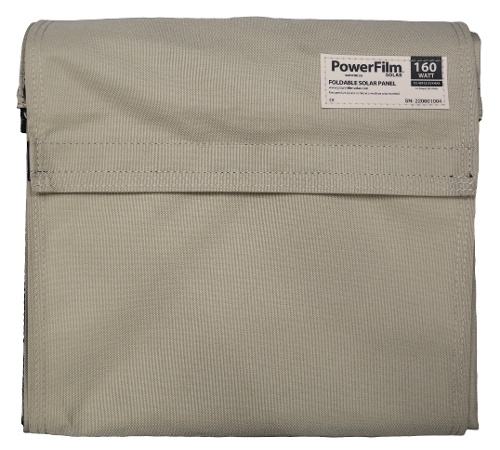

160w crystalline foldable solar panel_khaki_web

Specifications

  • Wattage: 160W

  • Operating Voltage: 28.3V

  • Current: 5.7A

  • Dimensions

    • Folded: 12.5 x 11.0 x 1.5 (in) /317.5 x 279.4 x 38.1 (mm)

    • Unfolded: 71 x 24.7 (in) /1,803.4 x 614.7 (mm)

  • Weight
    • 6.7lb / 3.0kg
  • Description
  • Important Notes
  • How To Charge
  • Where To Buy
  • Resources
  • Click the Where To Buy tab to see which distributors stock this product.

    Are you interested in purchasing a large quantity? Contact us directly.



    The 160W Crystalline Foldable Solar Panel is designed to charge small to medium electronic devices using DC power or one of many available accessories.

    What's included:

    • 160W Crystalline Foldable Solar Panel (F3-48F28.3VKHAS)

    Suggested Accessories:



    Best uses:

    • 12V battery charging

    • Small DC electric coolers

    • Camp lighting

    • HAM Radio and similar communications gear

    Benefits:

    • Easy to Use - Unfold the panel and start charging in seconds.

    • Durable - military tested, rugged connectors, weather-resistant fabric.

    • Lightweight - No frames, no special stands or mounting brackets needed.

    • Portable - Folds into a small package that fits in most backpacks.

  • Foldable Solar Panels are designed for regular outdoor use but not permanent outdoor installations. While light rain will not damage the panels if they are brought inside and dried before storing, the panels are not weatherproof and should not be deployed in poor conditions. The fabric may discolor and fray with permanent outdoor exposure, and the individual solar modules may also be compromised.



    Always store the Foldable Solar Panel in a cool, dry environment. If the panel is wet, allow it to thoroughly dry before folding and storing it to avoid damage (temperature range -30 to 60° C).



    Operating Voltage and Current are typical values when tested under load at AM 1.5 lighting conditions. Power performance may vary due to temperature, light spectrum, angle to the sun, and other effects (minimum 95% rated when new).



    Part Numbers

    Product part numbers on paperwork and invoices will include additional information not seen on the Foldable Solar Panel's physical label. Below are the codes added that designate color.

    Black - (BLK)

    Khaki - (KHA)

    Woodland - (WL)

    Digicam - (ACU)

    3 Color Desert Camo - (3CD)

    LiteLok Coyote Brown - (CB)

    LiteLok Multicam (LTMC)

    1. Unfold the panel with the solar side facing up and pointing towards the sun.

    2. Use the grommets on each corner and a tie cord to hold the panel in place and reduce loss or damage from high winds.

    3. Connect the appropriate charge controller and cable for the type of device you will be charging.
