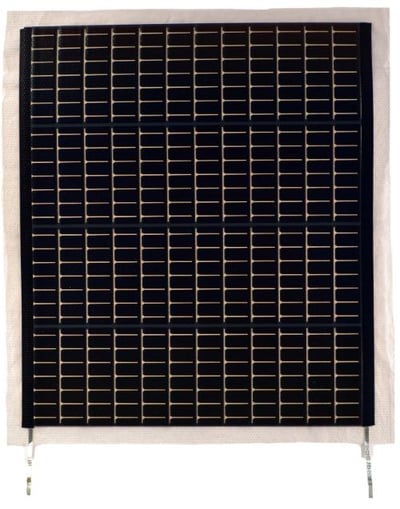

PT15-300

Product Details:

• Description

  Click the Where To Buy menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

  This ruggedized thin-film amorphous silicon flexible solar module is laminated with high-performance ETFE and tinned copper ribbon leads. It’s well-suited to collect direct and indirect sunlight in shady areas and offers robust protection against UV, moisture, and weather with an IP68 laminate edge seal and 20-year UV-rated materials.

  Electrical Specifications:

  Full Sun

  • Power: 3.08W

  • Operating Voltage: 15.4V

  • Current: 200mA

  1/4 Sun

  • Power: 693mW

  • Operating Voltage: 15.4V

  • Current: 45.0mA

  All Levels

  • Average Voc: 19.0V

  • Maximum Voc: 22.2V

  • Isc: 256mA

  Physical Specifications:

  • Dimensions: 283.0 x 313.0 (mm) / 11.14 x 12.32 (in)

  • Weight: 3.14oz / 89.30g

  • Thickness: 0.57mm

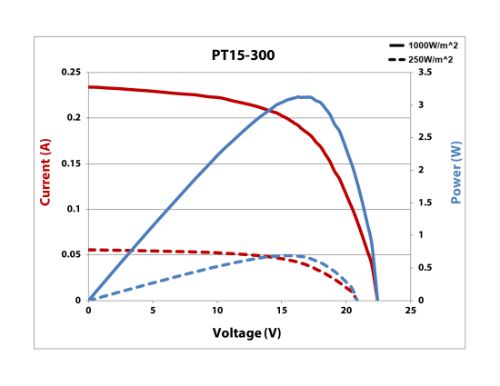

  IV Curve
