PT15-150

Product Details:

• Description

  Click the Where To Buy menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

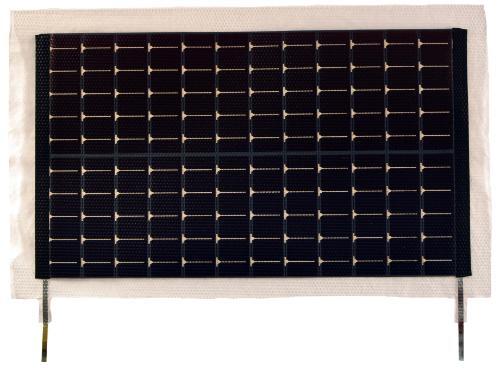

  This ruggedized thin-film amorphous silicon flexible solar module is laminated with high-performance ETFE and tinned copper ribbon leads. It’s well-suited to collect direct and indirect sunlight in shady areas and offers robust protection against UV, moisture, and weather with an IP68 laminate edge seal and 20-year UV-rated materials.

  Electrical Specifications:

  Full Sun

  • Power: 1.54W

  • Operating Voltage: 15.4V

  • Current: 100mA

  1/4 Sun

  • Power: 347mW

  • Operating Voltage: 15.4V

  • Current: 22.5mA

  All Levels

  • Average Voc: 19.0V

  • Maximum Voc: 22.2V

  • Isc: 128mA

  Physical Specifications:

  • Dimensions: 283.0 x 172.0 (mm) / 11.14 x 6.77 (in)

  • Weight: 1.09oz / 31.13g

  • Thickness: 0.57mm

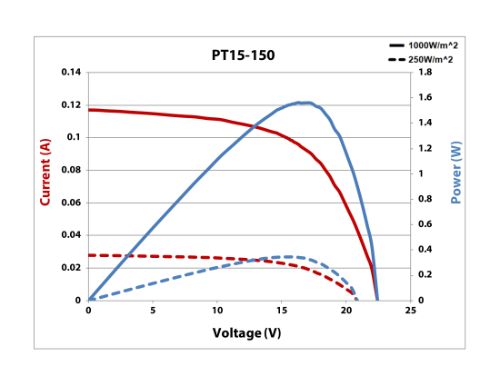

  IV Curve
