RC7.2-75F

Product Details:

• Description

  Click the Where To Buy menu below to see which distributors stock this product.

  Are you interested in purchasing a large quantity? Contact us directly.

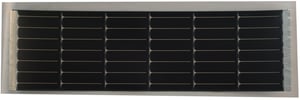

  This thin-film amorphous silicon flexible solar module is laminated with standard duty PET, edge seal, and exposed backside contacts. It’s well suited to collect direct sunlight and indirect light in shady areas. Protected against moisture and tolerant to limited, intermittent UV exposure.

  Electrical Specifications:

  Full Sun

  • Power: 864mW

  • Operating Voltage: 7.2V

  • Current: 120mA

  1/4 Sun

  • Power: 194mW

  • Operating Voltage: 7.2V

  • Current: 27.0mA

  All Levels

  • Average Voc: 10.5V

  • Maximum Voc: 11.1V

  • Isc: 154mA

  Physical Specifications:

  • Dimensions: 271.0 x 92.0 (mm) / 10.67 x 3.62 (in)

  • Weight: 0.19oz / 5.44g

  • Thickness: 0.22mm

  IV Curve



• Distributors

  United States

  Ships Internationally











  International

  United Kingdom



• Resources

  RC7.2-75F Drawing

  Electronic Component Solar Panel Handling Instructions

  How to Solder PowerFilm Electronic Component Solar Panels
