24W SemiFlex Solar Panel with Built-In Charge Controller for Thermo King Precedent TRU (R3-7F13.7VTK)

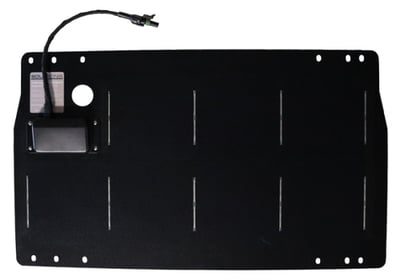

24W Semi-Flexible Solar Panel with Integrated Charge Controller for Thermo King Precedent Trailer Refrigeration Unit

Applications:

  • TRU Battery management for Thermo King Precedent.

Specifications:

  • Panel output to PowerBoost Built-In Charge Controller
    • Nominally 24W
  • PowerBoost Built-In Charge Controller Output to Battery
    • Charges 12V battery (flooded and AGM)
    • Charging voltage 13.8V float, 14.5V max
    • Charging efficiency 88-91%
    • Effective power to battery 21.1W
    • Current to the battery 1.5A - 2.0A (depending on battery voltage).
  • Description
  • Important Notes
  • Specifications
  • Resources
  • Keep your fleet running smoothly with the 24W SemiFlex Solar Panel, designed for commercial transportation. This maintenance-free solution supports TRU batteries, helping fleet managers prevent starting battery failures, reduce downtime, and lower operating costs.



    The Integrated PowerBoost Charge Controller maximizes solar output for 12V battery systems—extending battery life, preventing overcharging, and reducing maintenance expenses.


    The panel attaches easily to the metal frame of the TRU with four self-tapping screws. Older Thermo King units may need rubber feet as spacers between the panel and metal frame to avoid height obstructions. (Screws and spacers are not included).



    The 24W SemiFlex Solar Panel helps fleets stay on schedule by reducing jumpstarts, extending battery life, and cutting maintenance costs—improving reliability, efficiency, and overall performance.



    Learn more about the benefits of this panel and solar in general in The Ultimate Guide to Solar Panels for Transportation Refrigeration Units: Boosting Efficiency, Reliability, and Savings



    Kit Options

    15ft. Wiring Harness Kit (CTK-TK-24-15):

    • 24W SemiFlex Solar Panel with Built-In Charge Controller for Thermo King Precedent TRU (R3-7F13.7VTK)
    • 15ft. Wiring Harness

    Benefits:

    • Built-In PowerBoost Charge Controller for optimized charging and battery safety

    • Rugged, self-cleaning surface

    • High-efficiency Maxeon cells for maximum power output

    • Designed, engineered and assembled in the USA

    • Tested to meet or exceed performance standards

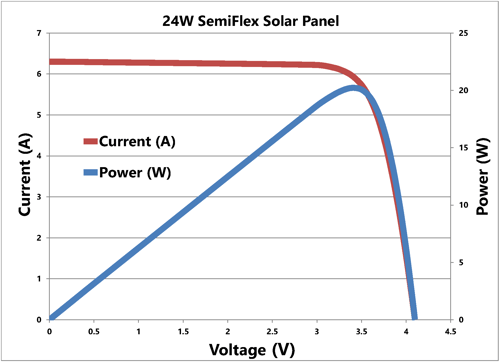

    IV Curve

    24W SemiFlex Solar Panel IV Curve

  • All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.

  • Power:

    • Panel output to PowerBoost Built-In Charge Controller

      • Nominally 24W

    • PowerBoost Built-In Charge Controller Output to Battery

      • Charges 12V battery (flooded and AGM)

      • Charging voltage 13.8V float, 14.5V max

      • Charging efficiency 88-91%

      • Effective power to battery 21.1W

      • Current 1.5A - 2.0A (depending on battery voltage).

    Charge controller:

    • Protection

      • Reverse polarity

      • ESD capability (AEC-Q101): human body model: class H3B: > 8 kV

      • Reverse leakage

    Physical:

    • Dimensions

      • 22.30 x 12.97 x 0.10 (in) / 566.4 x 329.4 x 2.5 (mm)

      • Black fiberglass backing

    • Weight

      • 1.9lb / 0.9kg

    Environmental:

      • Temperature Coefficient

        • Power: -0.27%/ºC
        • Voltage: -0.236%/ºC

        • Current: 0.058%/ºC

      • Storage temperature: -40°C to 85°C

      • Operating temperature: -40°C to 85°C
