Product Details:

• Description

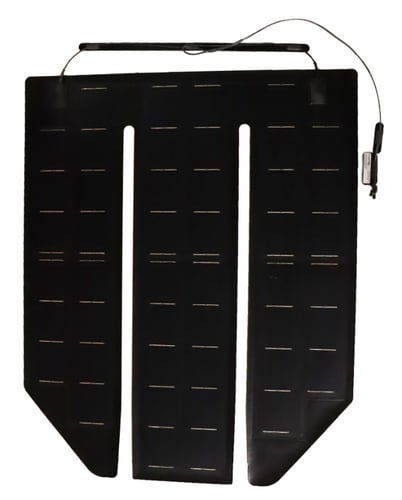

  Keep your fleet running smoothly with the 160W SuperFlex Solar Panel, designed for commercial transportation. This maintenance-free solution reliably charges starting batteries for three- or four-battery vehicles with day cab fairings and persistent starting battery issues, helping fleet managers prevent starting battery failures and reduce downtime.

  Paired with PowerFilm’s proprietary charge controller technology, the panel maximizes solar output for 12V battery systems, extending battery life, preventing overcharging, and reducing maintenance costs.

  The Place & Pull double-release liner enables quick, damage-free installation by minimizing panel flex, a common issue with other semi-flexible designs. This protects the high-efficiency Maxeon monocrystalline cells, ensuring exceptional power output and long-term durability.

  With an integrated edge seal, the panel eliminates the need for external edge taping, reducing installation time while ensuring a clean, professional finish that withstands harsh conditions.

  The 160W SuperFlex Solar Panel helps fleets stay on schedule by reducing jumpstarts, extending battery life, and cutting maintenance costs—improving reliability, efficiency, and overall performance.

  Kit Options:

  22ft. Wiring Harness Kit (CTK-F-160-22):

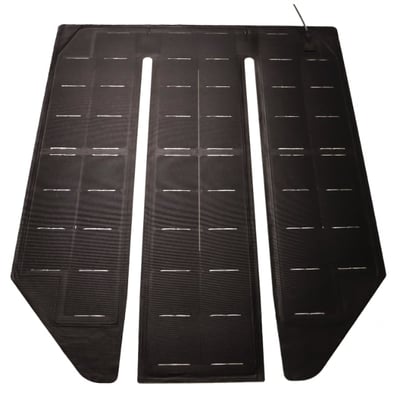

  • 160W SuperFlex Solar Panel with Integrated Edge Seal

  • Charge Controller with 22ft. Wiring Harness

  Benefits:

  • Easy installation with integrated edge seal and Place & Pull double-release liner

  • Pairs with PowerFilm-designed charge controller for optimized charging and battery safety

  • Rugged, self-cleaning surface

  • High-efficiency Maxeon cells for maximum power output

  • Designed, engineered, and assembled in the USA

  • Tested to meet or exceed performance standards

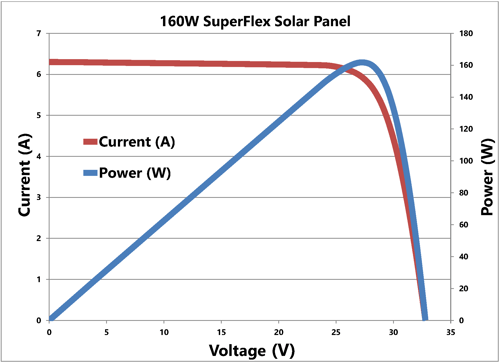

  IV Curve



• Important Notes

  All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.

• Specifications

  Power:

  • Voltage: 27.1V

  • Current: 5.8A

  • Open Circuit Voltage: 32.8V

  • Short Circuit Current: 6.3A

  Physical:

  • Dimensions

    • 49.7 x 40.3 x 0.1 (in) / 1,262.4 x 1,023.6 x 2.5 (mm)

  • Weight

    • 8.0lb / 3.6kg

  Environmental:

  • Temperature Coefficient

    • Power: -0.27%/ºC

  • • Voltage: -0.236%/ºC

    • Current: 0.058%/ºC

  • Storage temperature: -40°C to 85°C

  • Operating temperature: -40°C to 85°C

• Resources

  Spec Sheet

  FAQs

• Compatibility

  Sleeper Cabs:

  • International mid and high roof sleeper cabs in the LT series.

  • Freightliner mid and high roof sleeper cabs in the Cascadia series.

  • Will not fit Kenworth, Peterbilt, or Volvo sleeper cabs.

  • May fit other brands if there is a space 50" wide by 41" long with no ribs, shelves, or obstructions. Please measure or contact PowerFilm for help determining the fit for other equipment.

  Day Cabs

  • Freightliner Cascadia day cabs with the OEM fairing.

  • May fit other brands if there is a space 50" wide by 41" long with no ribs, shelves, or obstructions. Please measure or contact PowerFilm for help determining the fit for other equipment.
