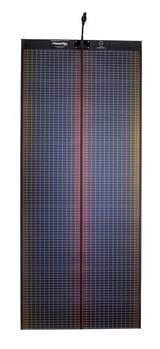

60W PowerTour RV Solar Panel Kit (RV-15-3900-KIT)
- Operating Voltage: 15.4V
- 85.7 x 26.5 (in) / 2,176.8 x 673.1 (mm)
- 4.6lb / 2.1kg
- Important Notes
- How To Install
- Where To Buy
The 60W PowerTour RV Solar Panel Kit provides your RV battery with simple solar charging keeping it topped off whether on the road or at a campsite.
- 60W PowerTour RV Solar Panel (RV-15-3900)
- 15 ft. Extension Cord (RA-7)
- 4 in. O-ring cable (RV-11)
- 4.5A Charge Controller (RA-9)
- Additional installation items
- 12V battery charging
- Camp lighting
- RV battery charging
- RV battery maintenance
- Extended Battery Life - as much as 6-10 years
- Easy to Install - complete in minutes; all easy to follow instructions included
- Rugged - marine grade connectors, strong adhesive, and the most flexible and durable solar in the world - stands up to hail and all weather elements
- Low Light Operation - provides some power even in hazy or shaded environments.
- Lightweight - No frames, no special stands or mounting brackets needed
- Waterproof - No worry about using in wet environments
- Glass Free - Nothing to be broken
- Saves Time - Keeps RV batteries charged when not in use, ensuring they are ready to go when you are
All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.
Operating Voltage and Current are typical values when tested under load at AM 1.5 lighting conditions. Power performance may vary due to temperature, light spectrum, angle to the sun, and other effects (minimum 95% rated when new).
Clean the desired installation area with alcohol.
Peel adhesive backing from the solar panel.
Place solar panel on vehicle ensuring there are no pockets of air.
Connect the solar panel to the included 15 ft. Extension Cord (RA-7).
Connect the extension cord to the included 4.5A Charge Controller (RA-9).
Connect the O-ring cable to the battery terminal (RV-11)
